Cikakken bayani game da ka'idar aiki, sigogin samfuri, da tsarin ciki napneumatic solenoid bawuloli
A matsayin babban sashi a cikin tsarin pneumatic, ka'idar aiki na bawul ɗin solenoid na pneumatic yana cikin ƙwararrun aikace-aikacen ƙarfin lantarki. Lokacin da bawul ɗin solenoid ya sami kuzari, nada yana haifar da ƙarfin maganadisu, yana jan hankalin baƙin ƙarfe don motsawa, don haka matsewar iska na iya wucewa ta cikin bawul ɗin bawul ɗin kuma shigar da bawul ɗin solenoid. Da zarar bawul ɗin solenoid ya ƙara ƙarfi, ƙarfin maganadisu ya ɓace nan da nan, kuma aikin bazara yana rufe ainihin bawul ɗin, yana hana iska wucewa.
Bawul ɗin solenoid na pneumatic galibi ya ƙunshi na'urar lantarki da kuma jikin bawul. Bangaren electromagnet ya ƙunshi baƙin ƙarfe core, coil, da bracket don gyara baƙin ƙarfe. Lokacin da coil ɗin ya sami kuzari, ƙarfin maganadisu yana haifar da ƙarfi, ƙarfin baƙin ƙarfe yana jan hankali, kuma a lokaci guda, matsewar iska a mashigar iska na iya shiga cikin bawul ɗin solenoid cikin sauƙi. Bayan da aka yanke wutar lantarki, ƙarfin maganadisu ya ɓace, kuma matsi na bazara yana rufe babban bawul, yana hana iska daga wucewa.
Bugu da ƙari, bawul ɗin solenoid na pneumatic shima yana sanye da zoben rufewa da gaskets, waɗanda aka ƙera don tabbatar da aikin rufewa tsakanin bawul core da wurin zama. Waɗannan kayan suna buƙatar samun ƙarancin ƙima na juriya da kyakkyawan juriya don tabbatar da cewa babu lalacewa ko lalacewa yayin amfani da dogon lokaci.
A ƙarshe, bawuloli na solenoid na pneumatic suna da hazaka suna sarrafa jagorar matsewar iska ta hanyar ƙarfin lantarki, kuma suna da fa'idodi da yawa kamar ƙaramin tsari, ƙaramin girman, nauyi mai nauyi, aiki mai mahimmanci, da kulawa mai sauƙi. Yana taka muhimmiyar rawa a cikin tsarin pneumatic kuma ana amfani dashi ko'ina a cikin kashewa, juyawa, da tsarin iskar gas da sauransu.

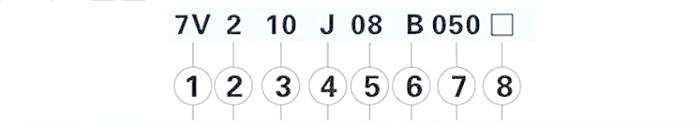

| 1️⃣ Ƙidaya Code | 7V: 5-hanyar 2-matsayi Pneumatic Solenoid Valve | |||||||||
| 2️⃣ Jerin Code | 05: 05000 Jerin | 1:100 Jerin | 2:200 Jerin | |||||||
| 3️⃣ Yanayin Kula da Lantarki | 10: Dual -matsayi Single Electronic Control 20: Dual{1}}matsayi Dual{2}Ikon lantarki |
|||||||||
| 30C: Matsayi Uku{1} Rufe Nau'in Cibiyar Kula da Lantarki Dual Electronic 30E: Uku -Mataki Biyu{2}}Matsakaicin Sarrafa Nau'in Ƙarfafawa ta Lantarki{3} 30P: Matsayi na Uku- Nau'in Matsi na Matsakaicin Matsakaici Mai Kula da Lantarki Dual |
||||||||||
| 4️⃣ Nau'in Sadarwa | Blank: Threaded Pipe J: Mai sauri - haɗa bututun haɗin gwiwa |
|||||||||
| 5️⃣ Diamita Haɗin Bututu | Bututu mai zare | M5:M5 | 06: PT1/8 | 08: PT1/4 | ||||||
| Mai sauri {{0}Haɗa Bututun Haɗi | 04: % 4 mm | 06: Φ 6 mm / 08: Ф 8 mm | 08: Ф 8 mm / 10: Φ 10 mm | |||||||
| 6️⃣ Standard Voltage | A: AC220V B: DC24V C: AC110V F: DC12V | |||||||||
| 7️⃣ Tsawon Waya Tasha | 050:0.5m 200:2.0m | |||||||||
| 8️⃣ Lambar Siffar Haƙori | Babu Irin Wannan Code | Blank: PT Haƙori G: G Haƙora T: NPT Haƙori | ||||||||
Mutane biyu masu alaƙa biyar
Tsarin "biyu{0}matsayi biyar-hanya" na bawul ɗin solenoid na pneumatic ɗaya ne daga cikin ƙirar sa na musamman. Wannan tsarin yana nufin cewa bawul ɗin solenoid yana da wurare guda biyu na aiki da tashoshi biyar, wato mashigar iska, tashar iska, tashar P, tashar jiragen ruwa A, da Port B. Ta hanyar ƙwararrun tsari da daidaitaccen sarrafawa, wannan tsarin yana ba da bawul ɗin solenoid damar yin aiki da sassauƙa kamar iskar gas, jujjuyawa, da ƙa'ida, don haka biyan buƙatun pneumatic iri-iri.
Mutane biyu masu alaƙa biyar
“Matsayi 2” anan suna nuni ne ga wurin sauyawa na bawul ɗin solenoid, wato solenoid valve yana da jihohi biyu. "5-way" yana nuna adadin tashoshi na mu'amala na waje na bawul ɗin solenoid, gami da mashigar iska, tashar iska, da yuwuwar shayewar tashar, jimlar tashoshi biyar. A cikin misalin, waɗannan tashoshi ana yiwa alama alama kamar A, B, R, S, da T.
Mutane biyu masu alaƙa biyar
“Matsayi 2” anan suna nufin jihohi biyun da bawul ɗin solenoid ke da shi yayin tsarin sauyawa, wato, buɗewa da rufewa. Hanyar "5-way" tana nuna cewa wannan bawul ɗin solenoid yana da tashoshi guda biyar na keɓancewa na waje, gami da mashigin iska ɗaya, tashar iska ɗaya, da yuwuwar tashoshin shaye-shaye biyu. Waɗannan tashoshi ana yiwa alama alama a sarari azaman A, B, R, S, da T, bi da bi, a cikin zane.
Daga cikin su, P yana wakiltar jimillar tushen iska, yayin da A da B suna da alaƙa da silinda. Lokacin da babu wutar lantarki, ana haɗa P da B, da A da R. Da zarar an kunna bawul ɗin solenoid, za a samar da hanya tsakanin P da A, kuma a lokaci guda, B da S kuma za a haɗa su.
Lokacin da ba a kunna bawul ɗin solenoid ba, P da B, da A da R, suna cikin sadarwa. Koyaya, lokacin da aka kunna bawul ɗin solenoid, za a samar da wani sashi tsakanin P da A, kuma a lokaci guda, B da S kuma za a haɗa su.
A sama akwai cikakken bayani game da ƙa'idar aiki, sigogin samfuri, da tsarin ciki na bawul ɗin solenoid na pneumatic. Don ƙarin koyan bayanai masu alaƙa, ziyarcihttps://www.joosungauto.com/.
